Dual-function audio taper pots pull up to activate an on/on double-pole double-throw mini switch.

Can be used as a normal volume or tone control, or control pickup phasing, series/parallel switching, coil-taps, and more.


Shaft diameter   6mm split shaft, coarse knurling

Thread                   3/8x32

Threaded portion height  3/4   (19.05mm)

Required mounting hole diameter  3/8"   (9.52mm)

Required body cavity depth  1-1/8" (28.58mm)

Two mounting nuts, flat washer and lock washer included

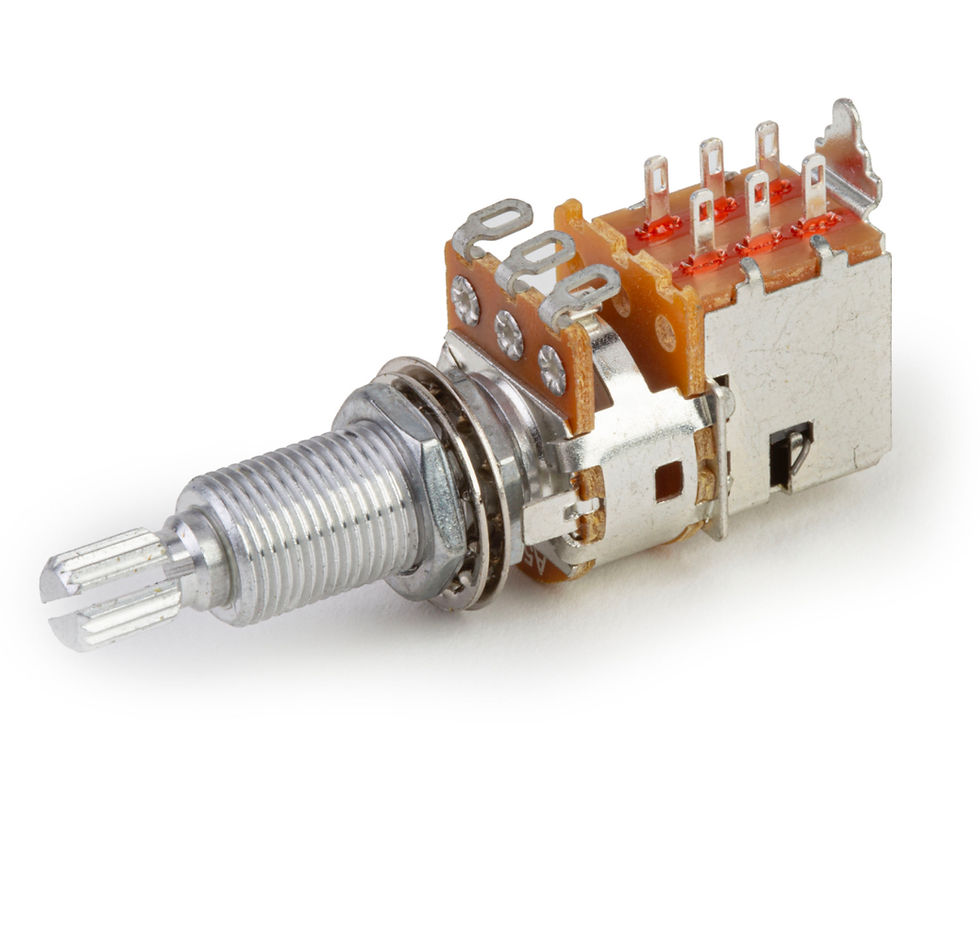

Alpha Push Pull Potentiometer A500K Long Shaft

SKU: SM1213
